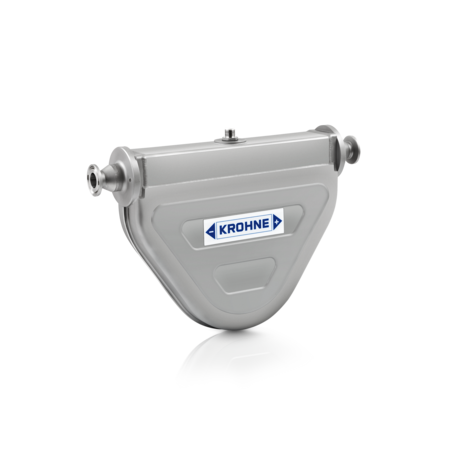

OPTIBATCH 4011

The OPTIBATCH 4011 is the standard Coriolis mass flowmeter for process batching of conductive and non-conductive liquids. It is a highly accurate and specialised meter for linear and rotating filling machines. The fully welded maintenance-free device with twin U-shape is particularly suitable for hygienic applications in the pharmaceutical or food and beverage industries. It can be equipped with DIN11864-2 hygienic flange connections, hygienic clamp connections or many other bespoke fittings according to customer specifications.

The OPTIBATCH 4011 does not require a separate converter due to its integrated electronics. The flowmeter can be connected to a PLC or DCS via the simple Modbus interface. This allows programming, commissioning and measurement over a single data connection.

Product highlights

• Twin bent tube design for process batching
• No separate converter needed: Communication direct from meter
• Excellent low flow stability, accuracy and repeatability
• Stainless steel construction for hygienic or non-hygienic applications
• Welded outer casing, sealed to IP67
• Immunity to crosstalk: resistant to installation and process effects

Typical applications

Machinery and apparatus (OEM industry), food and beverage industry

• Integration into rotating, linear and other filling machines
• Fast and precise process batching, filling, blending and dosing
• Hygienic or non-hygienic dosing and filling
• Ultrapure water and other non-conductive liquids
