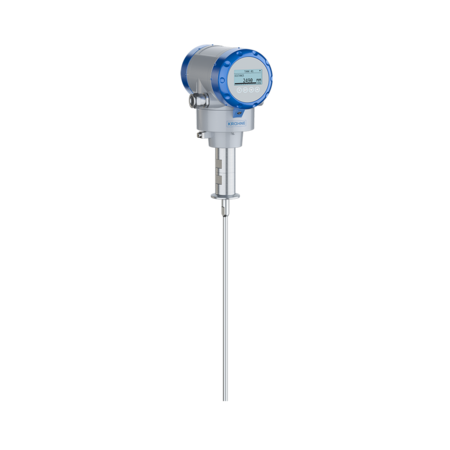

OPTIFLEX 3200

The OPTIFLEX 3200 is a 2-wire guided radar level transmitter based on the Time Domain Reflectometry (TDR) technology. It is designed for the measurement of level and interface in the food, beverage and pharmaceutical industry. The TDR is insensitive to steam, foam or condensation and suitable for a large variety of liquids with hygienic requirements. The wetted parts have a gap-free hygienic design that ensures simple and reliable cleanability (CIP/SIP). Dedicated industry-specific probes and process connections as well as various converter and electronic versions are available to suit every installation and facilitate device access.

Product highlights

• Hygienic probes and process connections for the food and beverage as well as pharmaceutical industry
• Suitable for SIP (Sterilisation In Place) and CIP (Cleaning In Place)
• Various converter and electronic versions to facilitate access to the device:
  • Remote converter up to 100 m / 328 ft
  • Horizontal or vertical housing to suit every installation
• Insensitive to steam, foam and condensation
• Measurement of interfaces starting at 50 mm / 1.97″
• Quick coupling system: converter is rotatable and removable under process conditions
• 3-year warranty
• Cast stainless steel housing
• ±2 mm / ±0.08″ accuracy

Typical applications

General

• Level and interface measurement of liquids in hygienic applications with finished and raw products
• Applications with storage tanks, vessels, mixers and containers

Food and beverage industry

• Fruit extract, compote
• Raw milk, cheese
• Beer, wine
• Yeast
• Fruit juice, tomato sauce, soup
• Vegetable oil, palm oil
• Liquid chocolate
• Syrup, liquid sugar
• Alcohols, purified water

Pharmaceutical industry

• Solvents, alcohols, aqueous solutions
• Slightly corrosive acids, alkalis
• Mineral oils, fuels
• Chlorobenzene, chloroform, cellulose spray
• Vaccines, plasma
