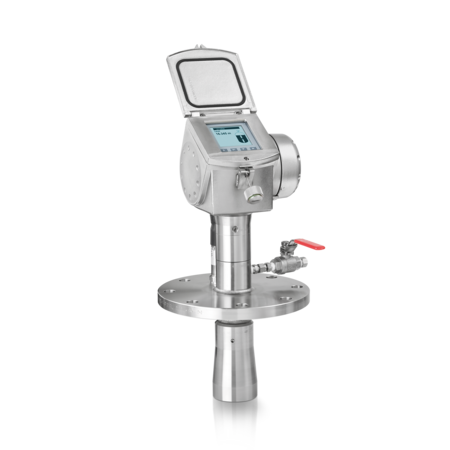

The OPTIWAVE 8300 Marine is a 2-wire 24 GHz radar (FMCW) level transmitter for non-contact level measurement in liquid cargo applications. The radar is a highly accurate and reliable instrument for measuring liquids, pastes and slurries. With its heavy-duty stainless steel housing, the level transmitter is designed to withstand the roughest weather conditions on ships.

Product highlights

• Rugged stainless steel (1.4404 / 316L) housing and display protection
• Accuracy: ±2 mm / 0.1″ uncertainty
• Drop antenna for applications with heavy condensation
• Metallic Horn antenna for high temperatures
• Built-in purging system (metallic Horn antenna)
• Quick coupling system: converter is rotatable and removable under process conditions
• Integrated pressure transmitter
• Marine approvals: DNV, GL, BV, RINA, ABS, LR, NK
• Weather protection lid for display and keypad
• Keypad accessible without opening the housing cover
• Closed tank cleaning connection for service of all internal components

Typical applications

• Marine and offshore applications
• Level measurement in liquid cargo tanks containing hydrocarbons, chemical solutions etc.
• Redundant ullage indications
