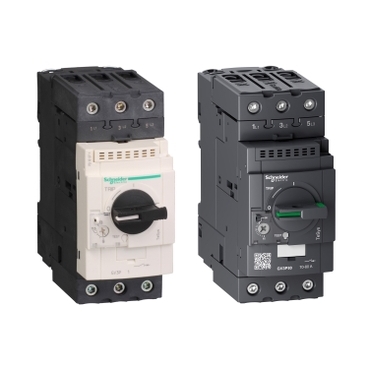

TeSys GV3

TeSys GV3 motor circuit breaker can be easily integrated within multiple configurations, thanks to its 55 mm standard width and mounting on DIN rail. Conforms to IEC 60947-4-1, IEC/EN 60947-2 and UL 60947-4-1 (transition from UL 508) with complete busbar accessories for quick connection.  The new GV3P73 and GV3P80 are extending the range up to 80 A.

GV3L:

• Magnetic circuit breaker
• Covers 25 to 80 A
• 11 to 45 kW motor with 50 to 100 kA / 400 V breaking capacity

GV3P:

• 9 ratings in total
• Thermal-Magnetic Breaker
• Covers 9 to 65 A 5.5 to 45 kW motor with 50 to 100 kA / 400 V breaking capacity

Specifications:

• Three-position (Start/Stop/Tripped) rotary handle, front face padlocking and other accessories
• Three-phase, 690 V rated operational voltage (Ue) maximum
• Operating temperature from -20° C to +60° C open operation
• IP20 level for finger safe protection
• Trip test button on front face
• Common add-on contact and trip blocks and accessories with GV2
• Patented EverLink creep-compensating technology provides many benefits:
  • Spring-based system ensures a long-lasting power connection
  • Reduce overheating leading to trip and also risk during short circuit
  • Ensure the correct torque tightening each time when you install the products

GV3 motor circuit breaker with all its complete accessories can provide you safe and strong connection for your motor equipment. You can:

• Ensure safety of personnel and motors
• Maintain reliability of the connection
• Reduce the time of maintenance
• Gain the flexibility and cost efficiency
• Ease cabling for manufacturing

TeSys GV3 can be used for a range of applications across industry, infrastructure and buildings, including:

• Motor control and protection, in accordance with standards IEC 947-2 and I
